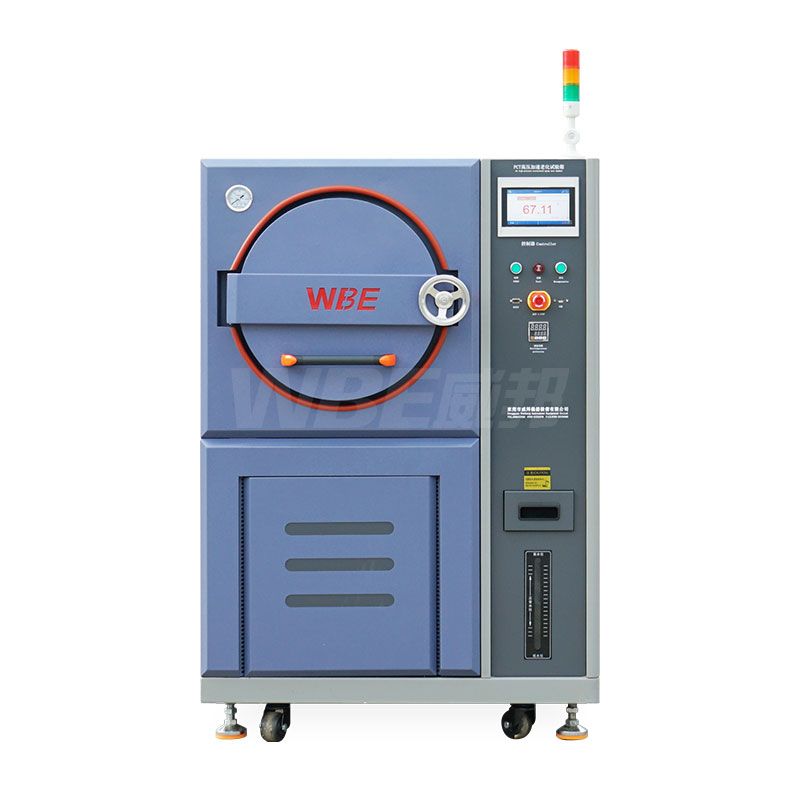

PCT High-Pressure stewing aging chamber
Product description
PCT high pressure cooking test chamber is suitable for IC semiconductors, connectors, circuit boards, magnetic materials, polymer materials, EVA, photovoltaic modules, national defense, aerospace, automotive parts, electronic parts, plastics, pharmaceuticals, circuit boards, LCD, lighting products and other electronic parts for high pressure, high temperature, saturated vepor, and other accelerated life reliability test.
Meet the criteria:
1.GB/T10586-1989 Humidity and heat laboratory technical conditions.
2.GB2423.3-93(IEC68-2-3) constant humid heat test.
3.MIL-STD810D Method 502.2.
4.GJB150.9-8 temperature and humidity test.
5.GB2423.34-86, MIL-STD883C method 1004.2 Combined cycle test of temperature, humidity and high pressure.
Product features
01
Round inner box, stainless steel round test inner box structure, in line with industrial safety container standards, can prevent condensation and dripping design in the test.
02
Round lining, stainless steel round lining design, can avoid steam latent heat direct impact on the test.
03
Precision design, good air tightness, less water consumption, each time adding water can be continuous 200h.
04
Automatic access control, circular door automatic temperature and pressure detection security access lock control, patented safety door design, the test will be backpressure protection when the box is greater than normal pressure.
05
Patented packing, when the pressure in the box is larger, the packing will have reverse pressure to make it more closely combined with the box, which is completely different from the traditional extrusion type, and can extend the packing life.
06
The vacuum action before the start of the experiment can extract the air in the original box and inhale the new air filtered by the filter (partical< 1micorn). To ensure the purity of the box.
07
Threshold LIMIT mode automatic safety protection, abnormal cause and fault indicator light display.
08
The industry's first application of fluid simulation design technology and product process manufacturing technology, the product is more energy saving.
09
The double-layer circular arc design of the inner liner can prevent the phenomenon of condensation and dripping in the test, so as to avoid the direct impact of superheated steam on the test results during the test.
10
Automatic water refill function, front type water level confirmation.
Technical specifications
|
Main technical parameters |
|||
|
Model |
WBE-PCT-35 |
WBE-PCT-40 |
WBE-PCT-55 |
|
Volume（L） |
35L |
40L |
55L |
|
Inner size（Φ*D） |
350*450mm |
400*550mm |
550*650mm |
|
Outer size（W*D*H） |
1000*860*1560mm |
1000*860*1560mm |
1150*1060*1650mm |
|
功率 |
2.2KW |
2.5KW |
3.5KW |
|
重量 |
230KG |
262KG |
325KG |
|
电源 |
AC220V 50/60Hz |
||
|
温度范围 |
100℃→+145℃（饱和蒸气温度） |
||
|
压力范围 |
0.2~3kg/cm² (0.05~0.294Mpa) |
||
|
加压时间 |
约45min |
||
|
湿度范围 |
100%RH（饱和蒸气湿度） |
||
|
压力偏差 |
≤±2Kpa |
||
|
温度均匀度 |
≤±2℃ |
||
|
温度偏差 |
≤±2℃ |
||
|
温度波动度 |
≤±0.5℃ |
||
|
分辨率 |
温度：0.01℃；湿度：0.1%RH；压力：0.1 kg/cm²； |
||
|
温度传感器 |
PT-100 ohnΩ |
||
|
保温围护结构 |
内胆：优质SUS316锈钢；外壳;轧钢板+双面静电喷塑工艺处理；内胆保温材料：超细玻璃棉。 |
||
|
燥音 |
≤60（dB） |
||
|
BIAS偏压端子（选购） |
依据用户需求定制 |
||
|
控制器 |
7寸彩色触摸屏控制器（带压力温湿度，带RS-485或RS-232通讯，USB烤数据） |
||
|
使用条件 |
环境温度：+5℃~+35℃;环境湿度：≤85%RH；环境大气压要求：86KPa～106KPa |
||
